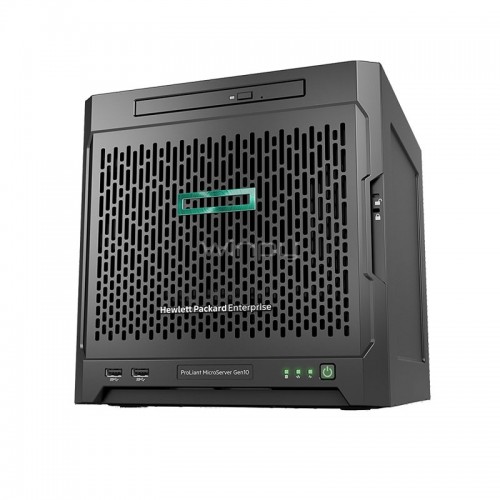

HPE ProLiant MicroServer Gen10

HPE ProLiant MicroServer Gen10 is a compact and uniquely designed server that is ideal for small and home offices looking to build their first IT server environment with a form factor that is easy to use.

HPE MicroServer Gen10 helps businesses to provide better and easy access to data, more efficiency in operations, while driving down their operating expenses.

Front View (External):

Front View (Internal):

1.

(2) USB 3.0 ports

1.

Hard drive screws

2.

Media bay (Optional (1) DVD-RW or (1) SATA SSD)

2.

Hard drive bays

3.

Front bezel lock/unlock indicators

4.

Power on/Standby button and system power LED

5.

Health LED

6.

NIC status LED

7.

Drive activity LED

Rear View:

Internal View:

1.

(2) USB 2.0 ports

1.

DIMM slots

2.

(2) USB 3.0 ports

2.

TPM connector

3.

NIC 1 port

3.

LFF/SFF SATA connector

4.

NIC 2 port

4.

SATA connector

5.

Power jack

5.

System board power connector

6.

PCIe Gen3 slots

6.

System battery

7.

VGA port

7.

Internal USB 2.0 port

8.

(2) Display Ports 1.2

8.

Expansion slot 2, PCIe3 x4 (1)

9.

Expansion slot 1, PCIe3 x8 (8, 4, 1)

What's New

New SKU Offerings

• Added a new Performance SKU (P07203-xxx) which replaces the previous Performance SKU (P03698-xxx)

Processor

AMD Opteron™ X3216 Processor (1.6-3.0GHz/2 compute cores/4 graphic cores/1MB/12-15W)

AMD Opteron™ X3418 Processor (1.8-3.2GHz/4 compute cores/6 graphic cores/2MB/12-35W)

AMD Opteron™ X3421 Processor (2.1-3.4GHz/4 compute cores/8 graphic cores/2MB/12-35W)

Cache Memory

2MB (1 x 2MB) L2 Cache
NOTE: For X3421 processor.

1MB (1 x 1MB) L2 Cache
NOTE: For X3216 processor.

Memory Protection

ECC

Memory

Type

HPE Standard Memory

DDR4 Unbuffered (UDIMM)

DIMM Slots Available

2

Standard

8GB (1 x 8GB) PC4-2400T DDR4 UDIMM

Maximum

32GB (2 x 16GB) PC4-2400T DDR4 UDIMM

NOTE: HPE memory from previous generation servers are not fully compatible with the HPE ProLiant MicroServer Gen10.

NOTE: Only the SKUs with X3421 processor support memory speed up to 2400 MT/s.

NOTE: SKUs with X3216 processor only support up to 1600 MT/s memory speed.

Network Controller

Embedded Broadcom BCM5720 Dual Port Gbe LOM

Expansion Slots

Expansion
Slot #

Technology

Bus
Width**

Connector Width

Form Factor

Notes

1

PCIe 3.0

X8

X8

Low Profile

 Open-end connector to support up to x16 PCIe card

2

PCIe 3.0

X1

X4

Low Profile

Open-end connector to support up to x16 PCIe card

Storage Controller

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the
HPE Smart Array Gen10 Controllers Data Sheet.

Embedded Storage Controller

Marvell 88SE9230 PCIe to SATA 6Gb/s Controller

NOTE: Supports RAID 0/1/10 only. No FBWC support.

Essential RAID Controller

HPE Smart Array E208i-p SR Gen10 Controller

NOTE: Supports RAID 0/1/5/10. No FBWC support.

Internal Storage Devices

Optical Drive

Optional: SATA DVD-RW drive

Optional: SATA SSD

Hard Drives

None ship standard

Solid State Drives

None ship standard

Maximum Internal Storage

Non-hot plug SATA

16TB (4 x 4TB) 3.5" SATA

Interfaces

Video

1 Rear VGA port

2 Rear Display ports 1.2

USB 2.0 Ports

3 total (2 rear, 1 internal)

USB 3.0 Ports

4 total (2 rear, 2 front)

Network RJ-45 (Ethernet)

2

Industry Standard Compliance

ACPI V5.0 Compliant

PCIe 3.0 Compliant

PXE Support

WOL Support

EMC Class B

USB 2.0

USB 3.0

SATA 6Gb/s

Server Power Cords

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

Power Specifications

To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at http://www.hpe.com/info/hppoweradvisor.

NOTE: See Technical Specifications section at end of QuickSpecs for Power Specifications.

Power Supply

One (1) 200 Watts non-hot plug, non-redundant Power Supply

System Fans

One (1) non-redundant system fan shipped standard

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server 2012 R2

Microsoft Windows Server 2016

Red Hat Enterprise Linux (RHEL) 7.4

ClearOS

NOTE: ClearOS, an easy to use OS with an application marketplace, allows you to build a fully functional server that is just right for you at no upfront cost. It is available via download.

NOTE: HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow. To learn more on what you can do, please visit http://www.hpe.com/servers/clearos.

NOTE: For more information on The Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at:
https://www.hpe.com/us/en/servers/server-operating-systems.html#OperatingSystems and our driver download page: http://www.hpe.com/downloads/microservergen10

Form Factor

Ultra Micro Tower

Service and Support

HPE Pointnext for Industry Standard Servers
HPE Pointnext delivers confidence, reduces risk and helps customers realize agility and stability. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Packaged Support Services

HPE Packaged Support Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Optimized Care

Supports maintaining servers at optimum performance availability

Foundation Care 24x7, three-year Packaged Support Service

HPE Foundation Care 24x7 connects you to HPE 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed. Simplify your support experience and make HPE your first call for hardware or software questions.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Standard Care

Supports maintaining high level of server availability

Foundation Care NBD, three-year Packaged Support Service

HPE Foundation Care Next Business Day connects you to HPE during business hours for assistance on resolving issues – features next business day hardware onsite response if needed and software call back within two hours. Simplify your support experience and make HPE your first call for hardware or software questions.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Related Services

HPE ProLiant Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

For more information

To learn more about HPE ProLiant servers, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner, or visit: https://www.hpe.com/us/en/services/operational.html

WW Entry BTO Model

[SKU Number]

870208-xx1

Processor

(1) AMD Opteron™ X3216 (1.6-3.0GHz/2-core/1MB/12-15W) Processor

Memory

8GB (1 x 8GB) PC4-2400T DDR4 UDIMM
NOTE: Total of 2 DIMM slots.
With X3216 processor, memory speed only gets up to 1600 MT/s.

Network Controller

Embedded Broadcom BCM5720 Dual Port 1Gbe LOM

Storage Controller

Embedded Marvell 88SE9230 SATA controller

Hard Drive

1TB (1 x 1TB) LFF NHP SATA HDD

Internal Storage

4 LFF NHP SATA HDD cage

Optical Drive Bay

None ship as standard

PCI-Express Slots

2 standard (Low Profile) PCIe 3.0

Power Supply

(1) 200W Non-Hot Plug, Non-Redundant Power Supply

Fans

(1) A non-redundant system fan ships standard

Operating System

ClearOS preloaded
NOTE: ClearOS, an easy to use OS with an application marketplace, allows you to build a fully functional server that is just right for you at no upfront cost. To learn more on what you can do, please visit: http://www.hpe.com/servers/clearos

Form Factor

Ultra Micro Tower

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response

Country Code Key

xx = 00

Americas

xx = 29

Japan

xx = 37

APJ

xx = 42

EMEA

xx = AA

China

Entry Models

Performance Models

[SKU Number]

873830-xxx

P07203-xxx

Processor

(1) AMD Opteron™ X3216
(1.6-3.0GHz/2-core/1MB/12-15W) Processor

(1) AMD Opteron™ X3418
(1.8-3.2GHz/4-core/2MB/12-35W) Processor

Memory

8GB (1 x 8GB) PC4-2400T DDR4 UDIMM
NOTE: Total of 2 DIMM slots.
With X3216 processor, memory speed only gets up to 1600 MT/s.

8GB (1 x 8GB) PC4-2400T DDR4 UDIMM

Network Controller

Embedded Broadcom BCM5720
Dual Port 1Gbe LOM

Embedded Broadcom BCM5720
Dual Port 1Gbe LOM

Storage Controller

Embedded Marvell 88SE9230 SATA controller

Embedded Marvell 88SE9230 SATA controller

Hard Drive

None ship as standard

None ship as standard

Internal Storage

4 LFF NHP SATA HDD cage

4 LFF NHP SATA HDD cage

Optical Drive Bay

None ship as standard

None ship as standard

PCI-Express Slots

2 standard (Low Profile) PCIe 3.0

2 standard (Low Profile) PCIe 3.0

Power Supply

(1) 200W Non-Hot Plug,
Non-Redundant Power Supply

(1) 200W Non-Hot Plug,
Non-Redundant Power Supply

Fans

(1) A non-redundant system fan ships standard

(1) A non-redundant system fan ships standard

Operating System

None ship as standard

None ship as standard

Form Factor

Ultra Micro Tower

Ultra Micro Tower

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor,
1-Year Onsite support with next business day response

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response

Solution Models

[SKU Number]

P04923-xxx

Processor

(1) AMD Opteron™ X3421 (2.1-3.4GHz/4-core/2MB/12-35W) Processor

Memory

8GB (1 x 8GB) PC4-2400T DDR4 UDIMM

Network Controller

Embedded Broadcom BCM5720 Dual Port 1Gbe LOM

Storage Controller

Embedded Marvell 88SE9230 SATA controller

Hard Drive

None ship as standard

Internal Storage

4 LFF NHP SATA HDD cage

Optical Drive Bay

None ship as standard

PCI-Express Slots

2 standard (Low Profile) PCIe 3.0

Power Supply

(1) 200W Non-Hot Plug, Non-Redundant Power Supply

Fans

(1) A non-redundant system fan ships standard

Operating System

None ship as standard

Form Factor

Ultra Micro Tower

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response

Others

Inclusive of an internal 8GB USB Drive which preloads ClearOS and ClearVM

Country Code Key

xxx = S01

Americas

xxx = 291

Japan

xxx = 375

AP

xx = 421

EMEA

HPE Security - Recommended

HPE Trusted Platform Module 2.0 Kit (Recommended)

745823-B21

NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

HPE Smart Array Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

Essential RAID Controllers - Recommended

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller (Recommended)

804394-B21

HPE Disk Backup

HPE RDX+ 500GB External Backup System

B7B66B

HPE RDX+ 1TB External Backup System

B7B69B

HPE RDX 2TB USB3.0 External Disk Backup System

E7X53B

HPE RDX+ 3TB USB 3.0 External Disk Backup System

P9L72A

HPE RDX+ External Docking System

C8S07B

HPE USB Keyboard and Mouse - Recommended

HPE USB US Keyboard/Mouse Kit (Recommended)

631341-B21

HPE USB JP Keyboard/Mouse Kit (Recommended)

631360-B21

HPE USB AP/INTL Keyboard/Mouse Kit (Recommended)

672097-373

HPE ProLiant MicroServer Generation 10

Maximum Memory

32GB of maximum memory is available with the installation of 2 x 16 GB UDIMM Memory kits.

Memory

Slot

1A

2B

Standard

8 GB

8 GB

Empty

16 GB

16 GB

Empty

Optional

16 GB

8 GB

8 GB

32 GB

16 GB

16 GB

Maximum

32 GB

16 GB

16 GB

Following are memory options available from HPE:

HPE Memory

Unbuffered with ECC DIMMs (UDIMMs)

HPE 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Unbuffered Standard Memory Kit

862974-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2400 CAS-17-17-17 Unbuffered Standard Memory Kit

862976-B21

5

Media bay for optional (1) optical drive or (1) SATA SSD for boot-drive

1, 2, 3, 4

Four (4) non-hot plug drive bays

Drive Support

Removable Media

Quantity
Supported

Position
Supported

Controller

DVD-RW Drive

1

5

Integrated SATA

SATA SSD

1

5

Integrated SATA

Maximum Storage Capacity

Internal

SATA

16.0TB (4 x 4TB)

System Unit

Dimensions (H x W x D) (with feet)

9.25 x 9.06 x 10.00 in (23.5 x 23.0 x 25.4 cm)

Weight (approximate)

Maximum
(Four drives, two DIMMs, optical drive or SSD and two expansion boards installed)

21.36 lb (9.70 kg)

Minimum
(one hard drive and one DIMM installed, no media drive or expansion board installed)

14.32 lb (6.50 kg)

Input Requirements
(per power supply)

Rated Line Voltage

 100 V AC to 240 V AC

Rated Input Current

3.5 A (at 100 V AC)

Rated Input Frequency

50 to 60 Hz

Rated Input Power

200W Power Supply
244 W (at 115 V AC)

Power Specifications

To review typical system power ratings use the Power Advisor which is available via the online tool located at URL: https://www.hpe.com/us/en/integrated-systems/rack-power-cooling.html

Power Supply Output
(per power supply)

Rated Steady-State Power

200 W Power Supply
200 W (at 100 VAC),
200 W (at 200 VAC)

Maximum Peak Power

200 W Power Supply
200 W (at 100 VAC),
200 W (at 200 VAC)

System Inlet Temperature

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
NOTE: System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Relative Humidity
(non-condensing)

Operating

The unit shall be fully functional from 10% to 90% relative humidity, 28°C maximum web bulb temperature, (non-condensing) across the operating temperature range of 0°C to 40°C.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Configuration

Lightly loaded

Heavily loaded

CPU type and quantity

AMD Opteron^TM processor at 15W
cTDP x1

AMD Opteron^TM processor at 35W
cTDP x1

DIMM type, capacity and quantity

8 GB UDIMM 2400MT/s x1

8 GB UDIMM 2400MT/s x1

HDD type and quantity

2.5” SFF NHP HDD
500 GB x1

3.5” LFF NHP HDD
500 GB x4

Idle Sound Power Level in Bels LWAd

3.8 Bels

4.0 Bels

Operating Sound Power Level in Bels LWAd

3.8 Bels

4.0 Bels

Idle Sound Pressure Level LpAm

26.0 dBA

30.4 dBA

Operating Sound Pressure Level LpAm

26. dBA

31.0 dBA

Note

The listed sound levels apply to listed configurations. Additional options may result in increased sound levels. Please have your HPE Rep. refer to EMESC website for further technical details regarding the configurations listed above.

NOTE: Acoustics levels presented here accounts for test configuration only and acoustics level will vary depending on system configuration

NOTE: Values are subject to change without notification and are for reference only.

Emissions Classification (EMC)

FCC Rating

Class B

Normative Standards

CISPR32, EN55032, EN55024

FCC CFR 47, Pt15; ICES-003; CNS13438; GB9254

K32; K24; EN61000-3-2;
EN61000-3-3;

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Environment-friendly Products and Approach

End-of-life    Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
